About this guide: Written by the Brickell Mazda Service Center in Miami's Little Havana. Our Mazda-certified technicians use the Mazda Modular Diagnostic System (M-MDS) and OEM tooling to diagnose every Mazda vehicle that comes through our bay. Last reviewed April 2026.

If your Mazda's check engine light is on, the first question is whether it's solid amber or flashing. A solid light usually means a non-emergency fault — you can typically drive home and schedule service within a few days. A flashing light means active engine misfire and you should pull over, stop driving, and call (786) 481-4541. Continuing to drive with a flashing check engine light can destroy a catalytic converter in under 50 miles of driving — and on a modern Mazda, catalytic converter replacement is one of the most expensive repairs in the powertrain. The light itself is just a messenger. The actual problem is whatever diagnostic trouble code (DTC) is stored in the engine control module.

This guide covers what the light means across every recent Mazda model — Mazda3, Mazda6, CX-5, CX-9, CX-30, CX-50, CX-70, CX-90, MX-5 Miata, and older Protegé and Tribute owners — what causes it most often, how to read codes yourself, why Miami drivers see certain failures more frequently than the rest of the country, and the question every reader is really here to answer: should I drive it, or stop?

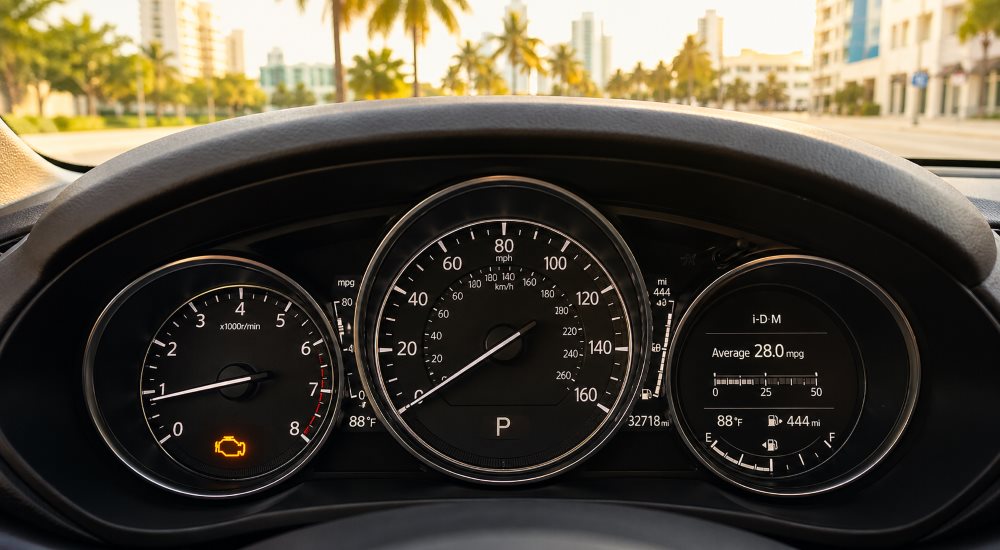

What Does the Mazda Check Engine Light Actually Mean?

The check engine light — Mazda's owner's manual calls it the Malfunction Indicator Lamp, or MIL — is a single amber icon shaped like an engine block. It illuminates when the engine control module (ECM) detects that one of the dozens of sensors monitoring your engine is reading outside its expected range. The ECM stores a diagnostic trouble code (DTC) describing what it saw, and depending on severity, it either turns the light on solid or makes it flash.

On every modern Mazda — Skyactiv-G, Skyactiv-D, Skyactiv-X, and e-Skyactiv PHEV — the same two-state system applies:

• Solid amber: An emissions-related fault has been confirmed across two or more drive cycles. The car is safe to drive in most cases, but the issue won't fix itself.
• Flashing amber: A misfire is happening right now, severe enough that unburned fuel is reaching the catalytic converter. This is a stop-driving warning.

In our Miami service bay, we see both presentations weekly. The split is roughly two-thirds solid, one-third flashing — though the flashing rate climbs sharply during summer months on older Mazdas with aging ignition coils, which is its own Miami-specific pattern we'll cover below.

Solid vs. Flashing: The 30-Second Decision

Light Behavior	What It Means	What to Do
Solid amber, car drives normally	Stored emissions or sensor fault; no immediate damage occurring	Drive home. Schedule diagnostic within a week.
Solid amber + rough idle, hesitation, or reduced power	Active driveability fault — the ECM is in a limp or compensation mode	Drive directly to the dealer or home. Don't take long trips.
Flashing amber	Active misfire — raw fuel entering the exhaust and damaging the catalytic converter	Pull over safely. Reduce load. Call for a tow if you're far from home.
Light came on, then turned off by itself	Pending code — the fault was seen once but not confirmed across drive cycles	Drive normally; mention it at your next service visit so the pending code can be read.

Stop-and-tow warning: If your Mazda's check engine light is flashing AND you notice a strong fuel smell, the engine shaking, loss of power, or smoke from the exhaust, do not continue driving. Pull over to a safe location, shut the engine off, and call Brickell Mazda Service at (786) 481-4541 for guidance. Continuing to drive in this condition can require a catalytic converter replacement that easily reaches four figures at any dealer or independent shop.

The Most Common Causes (in Order of How Often We See Them)

Across the Mazda vehicles that come through our service bay each year, these are the causes that come up most often. The order is approximate — it shifts with model year, mileage, and how the car is driven — but it's a useful mental model when the light first appears.

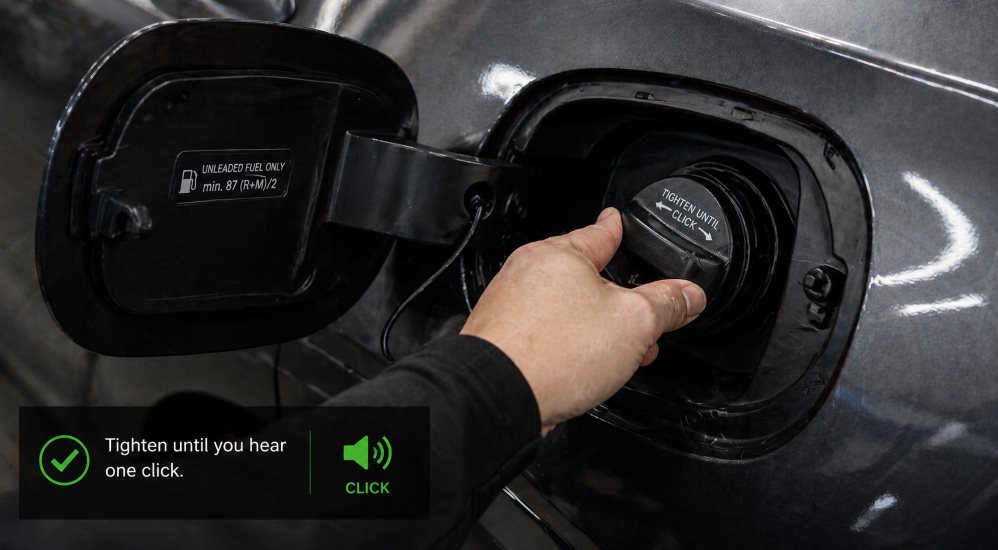

1. Loose or failing fuel cap

This is the cause every dealer mentions and every owner forgets. Mazda's evaporative emissions (EVAP) system pressure-tests the fuel tank periodically. A fuel cap that wasn't tightened to the click — or one whose rubber seal has hardened from years of South Florida heat — lets pressure leak and triggers a P0455, P0456, or P0457 code. If you just filled up and the light came on within 50 miles of driving, retighten the cap until you hear three audible clicks. The light may take 1–2 drive cycles to clear on its own.

2. Oxygen (O₂) sensor failure

Mazdas typically run two O₂ sensors per bank — upstream (before the catalytic converter) and downstream (after). They're the most heat-stressed sensors on the car, mounted directly in the exhaust stream. After 90,000–130,000 miles, they slow down and the ECM stops trusting their readings. Codes P0131, P0134, P0137, and P0140 are the usual suspects. In Miami, salt-laden air corrodes the sensor connectors faster than in inland climates, which is one reason the upper end of that mileage range tends to come earlier here than in, say, Atlanta or Denver.

3. Ignition coil or spark plug failure (most common cause of flashing light)

Each cylinder on a modern Mazda gets its own ignition coil-on-plug. When one fails — or the spark plug under it wears past its service interval — that cylinder misfires, the ECM detects it, and the light flashes. Codes P0301 through P0306 indicate misfires on cylinders 1–6 specifically (a four-cylinder Mazda3 won't see P0305 or P0306). Miami's heat-and-humidity cycle is particularly hard on coils — the rubber boots that seal the coil to the plug crack faster here than in dry climates, letting moisture in and triggering misfires.

4. Mass airflow (MAF) sensor contamination

The MAF sensor sits between your air filter and intake manifold and measures the air entering the engine. It's a hot wire that any contamination — dust, oil from a poorly-fitting aftermarket air filter, even spider webs on cars that sit — will throw off. Code P0101 or P0171 (lean condition) is common. MAF cleaning with the correct contact-safe spray often restores function without replacement.

5. Catalytic converter efficiency

Code P0420 — "Catalyst System Efficiency Below Threshold" — is the catch-all for a catalytic converter that isn't cleaning emissions to spec anymore. It's almost always the consequence of an upstream problem (long-term misfires, oil burning, rich-running fuel system) rather than a converter failing on its own. If P0420 is your code, the real diagnostic question is what caused the converter to wear out early.

6. EVAP system leaks beyond the gas cap

If the cap is fine, the next-most-common EVAP fault is a cracked vent hose or a failed purge valve. P0441 and P0446 point to specific EVAP components. These codes don't affect driveability but won't pass Florida emissions inspection if your county requires it.

7. Other less common but real possibilities

Thermostat stuck open (P0128), VVT actuator (P0010, P0011 on Skyactiv-G), turbo wastegate or boost pressure faults on CX-50/CX-9/CX-90 turbocharged engines (P0299), transmission solenoid faults that illuminate the CEL alongside the AT light, and on diesel CX-5 Skyactiv-D markets (limited US availability), DPF (diesel particulate filter) regeneration issues.

Mazda Check Engine Light by Model

The list above applies to all Mazdas, but some models have their own well-known patterns. Here's what we see most often by vehicle.

Mazda3 Check Engine Light

The Mazda3 is the model that brings the most check-engine concerns into our service bay simply because there are more of them on Miami roads than any other Mazda. On 2014–2018 Skyactiv-G 2.0L and 2.5L Mazda3s, ignition coil failure is the single most common cause of a flashing light past 80,000 miles. On 2010–2013 Mazda3s with the 2.0L MZR engine, oil-control valve and VVT solenoid faults are common — codes P0010 or P0011. On 2019+ Mazda3 with Skyactiv-X (limited US availability), the spark-controlled compression ignition system has its own fault codes that require dealer-level diagnostics; these aren't easily read with a generic scanner.

If your Mazda3 check engine light flashes seven times specifically, that's not a Mazda-specific code count — it's the cylinder misfire warning behavior triggered by an active misfire repeating across drive cycles. The flash pattern itself doesn't tell you which cylinder. You need a scanner to read the actual P030X code.

Mazda CX-5 Check Engine Light

The CX-5 is Mazda's volume model and the second-most-common reason owners call us. On 2013–2016 CX-5s, the most common pattern is EVAP-related (P0455 / P0456) due to fuel cap or vent valve aging in heat. On 2017–2021 CX-5 2.5L Skyactiv-G, ignition coil and PCV valve issues lead the list. On 2019+ CX-5 with the 2.5L turbocharged Skyactiv-G, boost-related codes (P0299, P0234) and VVT solenoid codes (P0010, P0013) are the more common turbocharged-specific faults — and the turbo CX-5 is more sensitive to short-trip Miami driving (Brickell-to-Wynwood, Brickell-to-Coral Gables) than the naturally aspirated version because the turbocharger benefits from getting fully heat-cycled on longer drives.

Mazda CX-9 Check Engine Light

The 2007–2015 first-generation CX-9 with the 3.7L V6 had its own set of common codes — VVT solenoid (P0011, P0021), water pump weep that triggered cooling-system codes, and PCV valve issues. The 2016+ second-generation CX-9 with the 2.5L turbo Skyactiv-G shares the same turbo-related code set as the turbo CX-5, plus codes related to the all-wheel-drive transfer case on AWD models. CX-9 transfer case service is a Mazda-specific item that gets overlooked at independent shops.

Mazda 6 Check Engine Light

The Mazda 6 — discontinued in the US after 2021 — followed the same Skyactiv-G pattern as the Mazda3 of its era. On 2014–2017 Mazda 6s, ignition coils and the variable valve timing actuator are the most common causes. On older 2003–2008 Mazda 6s with the 2.3L MZR or 3.0L V6, EGR valve carbon buildup and timing chain tensioner issues drive most check-engine visits.

CX-30, CX-50, CX-70, CX-90

The newer Mazda crossover lineup is too young in service-bay terms for clear long-term failure patterns to emerge. What we see so far: on 2020+ CX-30 with Skyactiv-G 2.5L, fuel pump high-pressure relief valve faults appeared in early production (covered under TSBs at the time). On 2023+ CX-50 turbo, the same boost and VVT codes as the turbo CX-5. On 2024+ CX-90 with the inline-six 3.3L Skyactiv-G turbo and 48V mild hybrid, most check-engine concerns we've seen so far have been related to the M Hybrid Boost system rather than the engine itself, and they require Mazda M-MDS scanning to diagnose properly. The CX-90 PHEV has additional high-voltage system fault codes that should not be diagnosed without proper PHEV training.

MX-5 Miata

The current ND-generation MX-5 (2016+) with Skyactiv-G 2.0L is one of the most reliable Mazdas we service. When the CEL appears, it's most often EVAP, MAF contamination from long storage periods, or O₂ sensor age. On the older NC (2006–2015) and NB (1999–2005) Miatas, ignition coil failure is more common, and the soft-top drainage system can cause electrical-related codes if drain holes clog and water reaches harnesses — relevant in any Miami garage that floods during heavy rain.

Older Mazdas (Protegé, Tribute, MPV, RX-8)

The Protegé, Tribute, and MPV ranges are aging out of typical service intervals — most check-engine codes on these vehicles relate to wear-out items: O₂ sensors, EGR valves, ignition coils, and EVAP components. The RX-8 is a category of its own; the rotary engine has its own set of codes related to apex seal wear and ignition system that don't apply to any other Mazda. If your RX-8 check engine light is flashing, treat it more seriously than on a piston-engine Mazda — rotary engines tolerate misfires worse.

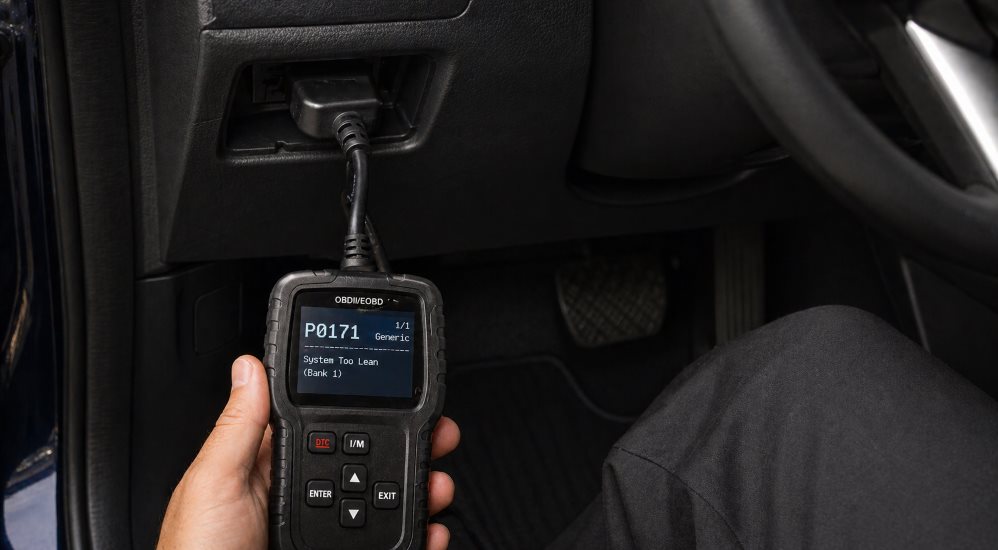

How to Read Mazda Check Engine Codes Yourself

Every Mazda built since 1996 has an OBD-II diagnostic port - it's a 16-pin connector usually located under the driver's-side dashboard, near the steering column or the brake pedal. Any consumer-grade OBD-II scanner can pull the diagnostic trouble code (DTC) the ECM has stored. Three options, in order of cost:

• Free code reads at chain auto parts stores. AutoZone, Advance Auto Parts, and O'Reilly all offer free code scanning. They'll plug in their scanner, give you the code, and usually print a generic description. Useful for a starting point. Less useful for diagnosing — they're motivated to sell you the part the code points to, which may or may not be the actual problem.
• Bluetooth OBD-II adapter (~$30–$80). A consumer scanner like a BlueDriver or OBDLink paired with a phone app gives you live data, freeze-frame data, and code descriptions. Best for owners who want to understand what's happening without a shop visit.

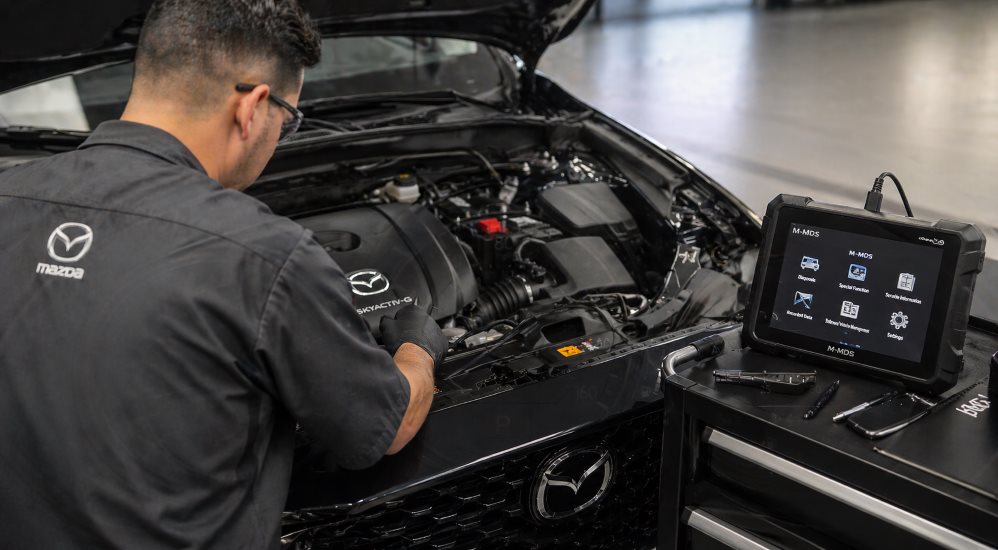

• Dealer-level diagnostic (Mazda M-MDS). The Mazda Modular Diagnostic System reads codes that generic OBD-II tools can't access — manufacturer-specific codes, body codes, hybrid system codes on CX-90 PHEV, and Skyactiv-X spark-controlled compression ignition codes. It also runs guided tests that isolate which component is actually at fault. This is what we use at Brickell Mazda.

Why dealer diagnostics are different: A generic OBD-II scanner reads the code stored. The Mazda M-MDS reads the code AND can run actuator tests, compare your sensor data to factory ranges, check for active TSBs by VIN, and verify the repair worked across multiple drive cycles. For a clear-cut code like P0455 (loose gas cap), a generic scanner is fine. For an intermittent misfire on a turbocharged CX-50, the M-MDS often saves hundreds of dollars in misdiagnosed parts.

Common Mazda DTC Codes Explained

Code	What It Means	Most Common Cause
P0010 / P0011	Camshaft position actuator / VVT timing	Oil-control valve, low oil level, or oil change overdue
P0101	Mass air flow circuit out of range	Dirty MAF sensor, dirty/oily air filter, intake leak
P0128	Coolant temp below thermostat regulating temp	Stuck-open thermostat
P0171	System too lean (bank 1)	Vacuum leak, MAF, fuel pressure issue
P0299	Turbocharger underboost	Wastegate, boost-control solenoid, intercooler leak (turbo CX-5/CX-50/CX-9)
P0301–P0306	Misfire on cylinder 1–6	Ignition coil, spark plug, injector, compression issue
P0420 / P0430	Catalyst efficiency below threshold (bank 1 / bank 2)	Worn catalytic converter (often downstream of long-term misfire or O₂ sensor drift)
P0455 / P0456 / P0457	EVAP system leak (gross / small / fuel cap)	Loose or aged fuel cap, cracked EVAP hose, purge valve
P0131 / P0134 / P0137 / P0140	Oxygen sensor circuit faults	Aged O₂ sensor (typically 90K–130K miles), corroded connector

Why Miami Mazda Drivers See Some of These More Often

This is where most generic check-engine articles stop. They list codes and causes, then send you on your way. We work in Miami, and our service bay sees patterns that don't appear in service bays in Denver or Cleveland. If you drive your Mazda in Miami-Dade County, here's what's actually different.

Heat accelerates rubber and plastic aging

The two parts most affected: ignition coil boots (the rubber sleeve that seals the coil to the spark plug) and EVAP system hoses. Both are made of rubber compounds that harden faster in sustained 90°F+ heat. We replace ignition coils on Mazda3s and CX-5s in Miami at lower mileage than the manufacturer's service interval would suggest — sometimes 20,000 miles earlier than the same Mazda would need in a temperate climate.

Salt air corrodes sensor connectors

If you live within a few miles of Biscayne Bay, the Atlantic, or you regularly drive across the Rickenbacker or MacArthur Causeway, your Mazda is exposed to higher airborne salt concentrations than the national average. Salt doesn't damage the sensor itself — it damages the connector. Green corrosion at the O₂ sensor or MAF connector is a recurring finding we document on Brickell, Coconut Grove, and Key Biscayne Mazdas more often than on cars that live inland.

Short-trip driving stresses turbocharged Skyactiv-G engines

If your daily Mazda commute is Brickell to Wynwood, Brickell to Coral Gables, or any 10–15 minute trip that doesn't get the engine fully heat-cycled, the 2.5L turbo Skyactiv-G in the CX-5, CX-50, CX-9, and Mazda3 Turbo can build up moisture and unburned fuel in the oil. Over time this affects the PCV system, the turbocharger, and the variable valve timing actuator. None of this is unique to Miami — it's true everywhere — but Miami's combination of dense urban driving and limited highway escape routes means a higher proportion of Mazdas live this way here.

Hurricane-season flood exposure

This is the one most owners don't think about until it happens. A Mazda that gets driven through standing water deep enough to reach the harness connectors under the floor will sometimes throw transmission codes, ABS codes, and engine codes for weeks afterward as moisture works its way out of the connectors. After heavy storms, we recommend bringing in any Mazda that drove through standing water for an electrical inspection — not just a code scan.

Can You Reset the Mazda Check Engine Light Yourself?

You can clear the code, but you should not, in most cases. Here's why.

Disconnecting the negative battery terminal for 15 minutes will clear stored codes on most Mazdas. So will an OBD-II scanner with a "clear codes" function. The light will go off. The problem will not.

If the underlying fault is still there - a worn O₂ sensor, a loose EVAP hose, an aging coil - the ECM will detect it again within 1-3 drive cycles and the light will return. Worse, clearing codes also clears the freeze-frame data that captured what the engine was doing when the fault occurred, which is exactly the diagnostic information a technician needs to find the real cause.

The one situation where resetting the light is reasonable: you genuinely fixed the root cause (replaced the spark plugs, tightened the fuel cap correctly) and want to verify the fix held. In every other case, leave the code stored and let a technician read it.

One important note on emissions inspection: If you reset codes immediately before a Florida emissions or safety inspection, the OBD-II readiness monitors won't have completed their drive-cycle tests yet. Most states will fail the inspection on "not ready" status. Florida currently does not require routine emissions inspections on most passenger vehicles, but if you're moving from Miami to a state that does (or you're getting a pre-purchase inspection), let the readiness monitors complete normally — typically 50–100 miles of mixed driving over several days.

Dealer vs. Independent Shop: When Each One Makes Sense

We're a Mazda dealer, so this section is one most readers expect us to slant. We won't.

An independent shop is genuinely fine for: EVAP-related codes (P0455/P0456/P0457), battery and alternator-related codes, simple sensor replacements when the code is unambiguous, basic misfire diagnosis on naturally aspirated engines, and any maintenance work that doesn't require Mazda-specific reprogramming. A good independent Mazda specialist with a quality scan tool can handle most of what we see, often at a lower labor rate. The labor-rate gap between Miami dealers and Miami independents is real — independents typically run lower hourly rates, and the savings are biggest on long jobs like timing chain work or transmission service.

A Mazda dealer is the better choice for: Anything involving the Skyactiv-X spark-controlled compression ignition system, anything involving the e-Skyactiv PHEV high-voltage system on the CX-90 PHEV, anything covered under your Mazda factory warranty (where dealer service preserves the warranty automatically), suspected ECU or TCM software issues that need a Mazda calibration update, intermittent codes that require Mazda M-MDS guided diagnostics to isolate, and any TSB-applicable repair that may be covered by an extended warranty campaign.

For Brickell Mazda owners, there's also the practical consideration of the Brickell Advantage two-year complimentary maintenance program, which covers the first several scheduled services on new Mazdas at no charge. If your check-engine concern coincides with a scheduled service interval, having both done at the same dealer visit is the simplest path.

What a Diagnostic Costs in Miami

We don't publish specific service prices in articles for the same reason most reputable shops don't — pricing varies by what's actually wrong, parts availability, and current promotions. What we can say honestly:

• The diagnostic itself — the time a technician spends connecting M-MDS, running tests, and isolating the cause — typically runs less than an hour of labor for a clear-cut code, and longer for intermittent issues. Independents usually charge less per hour but may not have access to Mazda-specific data.
• Parts costs vary widely by code. A fuel cap is among the cheapest service items you'll buy. An ignition coil is mid-range. A catalytic converter on a turbocharged Mazda is the most expensive single component in this article.
• Labor on simple components (gas cap, MAF cleaning, single coil) is short. Labor on V6 CX-9 timing chain or AWD transfer case work is long.

For a written estimate specific to your Mazda's year, model, and specific code, call our service team at (786) 481-4541 or check the current Brickell Mazda service specials page. We'll give you a real number before any work is authorized.

Frequently Asked Questions

Can I drive my Mazda with the check engine light on?

If the light is solid amber and the car drives normally, yes — drive it home and schedule service within a week. If the light is flashing, or if the car is shaking, hesitating, or losing power, don't drive it. Pull over and call for guidance or a tow.

How do I reset the check engine light on a Mazda 3?

Disconnecting the negative battery terminal for 15 minutes or using an OBD-II scanner's "clear codes" function will reset the light. But if the underlying fault is still present, the light will return within a few drive cycles. Reset only after you've actually fixed the cause.

Why does my Mazda CX-5 check engine light come on and off by itself?

Intermittent illumination usually indicates an intermittent fault — a connector that loses contact when the car flexes, an EVAP leak that only appears at certain temperatures, or a sensor that's failing gradually. The pending code stored during these episodes is exactly what M-MDS is designed to capture. Don't reset; let a technician read the history.

What does it mean when my Mazda check engine light flashes seven times?

The flash count itself isn't a Mazda-specific diagnostic code — it just indicates an active misfire repeating across drive cycles. To know which cylinder, you need an OBD-II scanner to read the specific P030X code (P0301 = cylinder 1, P0302 = cylinder 2, and so on).

How much does it cost to diagnose a check engine light at Brickell Mazda?

Diagnostic pricing depends on whether the code is clear-cut or intermittent, and on whether the issue is covered by your factory warranty or an active TSB campaign. Call (786) 481-4541 with your VIN and the code (if you have it) for a written estimate before any work begins.

Can a loose gas cap really turn on the check engine light?

Yes, and it's one of the most common causes. Mazda's EVAP system pressure-tests the fuel tank periodically, and a cap that wasn't tightened to three audible clicks will trigger codes P0455, P0456, or P0457. Tighten the cap fully; the light typically clears on its own within 1–2 drive cycles.

Will the check engine light affect my Mazda warranty?

The light itself doesn't void anything — but ignoring it can. If the underlying fault is something Mazda's powertrain warranty would cover, getting it diagnosed and repaired at a Mazda dealer protects your coverage. Driving for months with a flashing light and burning out a catalytic converter could create a wear-related claim that warranty may not cover.

Why do Miami Mazdas seem to need ignition coils more often?

Sustained heat ages the rubber boots that seal each coil to its spark plug, letting moisture in. Combined with Miami's humidity, this leads to coil failures we see at lower mileage than the national average. Salt air near the coast accelerates corrosion at the coil's electrical connector as well.

Should I take my Mazda to AutoZone for a free code read first?

It's a reasonable starting step — you'll get the code number for free, which is useful information. Just don't let the parts-store employee diagnose the cause. The code points to a system, not always to the part. A P0420 code can mean a worn catalytic converter, but the converter usually wore out because of an upstream problem.

How long can I drive with a flashing check engine light before damage occurs?

Damage to the catalytic converter from continued misfiring can occur within 50 miles of driving in some cases. Don't continue driving with a flashing light — pull over, shut the engine off, and arrange a tow if you're not within a few minutes of a safe destination.
